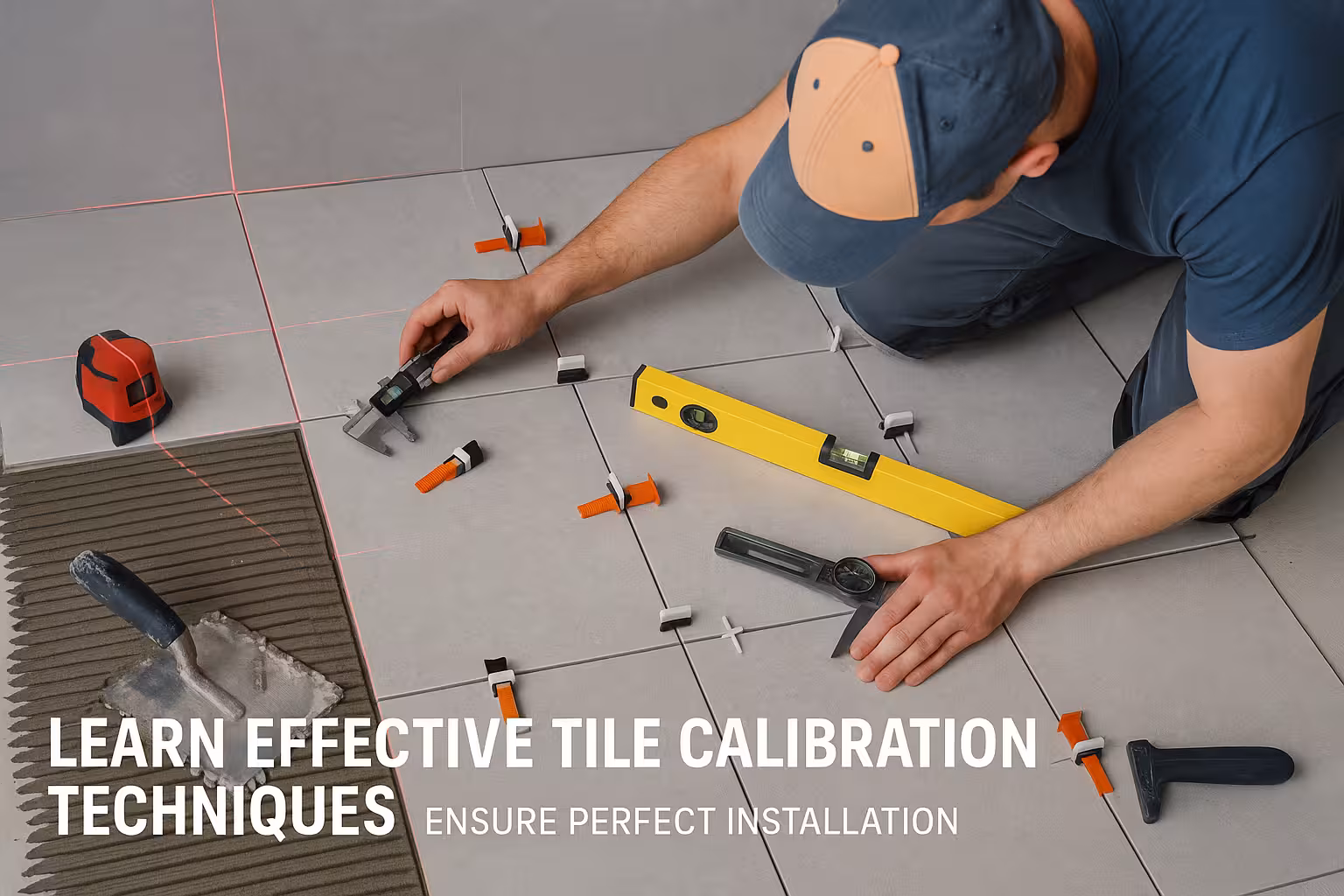

Learn Effective Tile Calibration Techniques to Ensure Perfect Installation

The foundation of successful tile calibration starts before you apply any adhesive. Proper sorting and measuring can prevent most installation issues before they occur.

Measuring Techniques

• Open multiple boxes and use a caliper or digital ruler to measure tile width and thickness—especially along multiple points of each tile side
• Check all four corners and the center of each edge, as tiles can vary even within the same piece
• Document measurements if working on large projects to track patterns in variation

Sorting Strategy

• Group tiles by size: keep larger and smaller tiles in separate stacks so you can plan the layout intentionally, instead of at random
• Create three categories: undersized, nominal (target size), and oversized
• Label stacks clearly to avoid mixing during installation

Understanding tile manufacturing codes is crucial for consistent installations. These numbers tell you important information about sizing tolerances and color matching.

Lot Numbers

Tiles from different lots or dye batches can vary in both color and size. Always verify that lot numbers match across all boxes before starting your project. Even slight color variations become glaringly obvious once installed, especially in well-lit areas.

Caliber Indicators

Caliber indicates the manufacturing "gauge," or sizing tolerance. Tiles are grouped into calibers during production based on their actual dimensions. Only use tiles with matching caliber numbers for projects requiring tight grout lines. Mixing calibers can result in grout joints that vary from 1/16" to 1/4" or more across the same installation.

One of the most effective ways to accommodate size variations is through strategic grout joint width adjustment. This technique allows you to maintain visual consistency even when tile dimensions aren't perfectly uniform.

Joint Width Guidelines

• Tight joints (1/16"): Only possible with rectified tiles that have precise, machine-cut edges
• Standard joints (1/8"): Suitable for most calibrated tiles with minimal variation
• Wider joints (3/16" to 1/4"): Necessary for tiles with noticeable size differences or rustic/handmade styles
• Consistent appearance: The goal is visual balance across the installation, not mathematical perfection

Strategic Adjustments

For tiles with visible size variation, increase grout joint width. This helps mask sizing differences as you progress. Keep joint width as consistent as possible, but don't be afraid to adjust slightly when needed—the human eye notices inconsistent joint width more than slight width variations.

Modern tile leveling systems have revolutionized professional installations, especially for large format tiles. These systems help compensate for thickness differences and prevent lippage between adjacent tiles.

Leveling System Benefits

• Compensates for tile thickness variations automatically
• Prevents lippage (height differences) between tiles during mortar curing
• Maintains consistent grout joint width throughout installation
• Reduces callbacks and warranty issues for professional installers
• Particularly valuable for tiles larger than 12" in any dimension

Types of Leveling Systems

Clip-and-Wedge Systems: The most common type, using disposable clips under the tile edge and reusable wedges on top to apply downward pressure during curing.

Spin Systems: Use a threaded cap that spins down to level tiles, offering more precise control but at a higher initial cost.

Strap Systems: Employ continuous straps rather than individual clips, ideal for very large format tiles or rapid installations.

Proper layout planning is perhaps the most critical calibration technique. A centered layout ensures symmetry and places cut tiles where they're least noticeable.

Center Layout Method

• Snap square reference lines from the center of the space, creating four equal quadrants
• Measure carefully to ensure your center point is truly centered on the most visible wall or entry point
• Build outward from the center in all four directions, maintaining your reference lines
• This ensures your cuts are on the perimeter where mismatches matter less
• Maintains symmetry and helps distribute any size variations evenly

Why Center Layouts Work

Starting from the center and working outward means that any cumulative size variations end up at the room's edges, where they can be absorbed into cut tiles or hidden under baseboards and trim. This is far better than starting at one wall and discovering your final row is dramatically off-center or an awkward width.

Backbuttering—applying a thin layer of mortar to the back of each tile—is essential for large format installations and helps compensate for thickness variations.

Backbuttering Technique

• Apply thinset to the substrate with a notched trowel as usual
• Add a thin layer of mortar to the back of the tile using the flat side of your trowel
• Press and twist the tile into place, ensuring full contact
• This technique fills valleys and ensures full coverage even with minor thickness differences

When Backbuttering is Critical

• All tiles 12" or larger in any dimension
• Natural stone tiles with texture or variation on the back
• Any tile installation where you're achieving less than 95% coverage with substrate mortar alone
• Installations where lippage must be minimized (commercial spaces, accessibility requirements)

Even experienced installers perform regular quality checks throughout the installation process. Catching issues early prevents costly corrections later.

Inspection Technique

• Every 3-5 tiles, lift one back up before the mortar begins to skin over
• Inspect the back of the tile for mortar coverage—you should see 95%+ contact
• Check for voids, especially in corners and edges where air can get trapped
• Verify the tile is sitting at the correct height relative to adjacent tiles
• Adjust trowel size, mortar consistency, or technique if coverage is inadequate

What to Look For

Good Coverage: Mortar is compressed across the entire back with only minimal gaps where trowel ridges remained uncompressed.

Poor Coverage: Visible trowel ridges still standing, mortar only on raised areas, or gaps larger than a quarter-inch anywhere on the tile back.

Perfect installations often require custom cuts to accommodate irregular walls, corners, or fixtures. Pattern scribing ensures these cuts fit precisely.

Pattern Scribing Technique

• Place the tile to be cut directly over the last full tile in the row
• Place another tile on top, butted against the wall or obstacle
• Mark the bottom tile along the edge of the top tile
• This creates a precise cut line that accounts for wall irregularities
• Cut carefully along your marked line for a custom fit

Cutting Best Practices

• Use a tile wet saw for straight cuts on ceramic and porcelain
• Score and snap for quick straight cuts on thinner tiles
• Use an angle grinder with diamond blade for curves and notches
• Always cut on the waste side of your line—you can remove more material, but you can't add it back

Before Installation:

• ✓ Verify all boxes have matching lot and caliber numbers
• ✓ Measure and sort tiles by actual size variations
• ✓ Perform dry layout to test pattern and identify issues
• ✓ Calculate and purchase appropriate spacers/leveling system
• ✓ Confirm substrate is flat, clean, and properly prepared

During Installation:

• ✓ Start from center and work outward in quadrants
• ✓ Use consistent trowel technique and notch size
• ✓ Backbutter all large format tiles
• ✓ Apply leveling systems before mortar begins setting
• ✓ Perform spot checks every 3-5 tiles
• ✓ Adjust grout joint width as needed for visual consistency

After Installation:

• ✓ Allow proper cure time before grouting (typically 24-48 hours)
• ✓ Remove leveling system components at appropriate time
• ✓ Inspect for lippage using straightedge before grouting
• ✓ Clean any mortar from tile faces before it fully cures

Mistake #1: Ignoring Size Variations

Assuming all tiles are exactly the labeled size leads to cumulative errors that become obvious across large installations. Always measure and sort first.

Mistake #2: Inconsistent Joint Width

Trying to force tiles into perfectly even spacing when they vary in size creates stress points and visual inconsistency. Better to slightly adjust joint width than compromise tile position.

Mistake #3: Starting from a Wall

Beginning at one edge means any size variations compound across the room, often resulting in an off-center pattern or awkward cuts at the far wall.

Mistake #4: Skipping Leveling Systems

Attempting large format installation without leveling systems frequently results in lippage that requires grinding or even replacement to correct.

Mistake #5: Inadequate Backbuttering

Relying solely on substrate mortar for large tiles often produces less than 80% coverage, leading to premature tile failure and hollow sounds.

While these techniques are accessible to committed DIYers, certain situations call for professional expertise:

Consider Professional Installation For:

• Large format tiles (24" or larger in any dimension)
• High-value materials like natural stone or specialty imported tiles
• Complex patterns such as herringbone, chevron, or geometric designs
• Commercial installations with strict flatness requirements
• Installations over challenging substrates (wood framing, old concrete, etc.)
• Projects where mistakes could be extremely costly

DIY-Friendly Projects Include:

• Standard size tiles (12" and smaller) in simple patterns
• Small areas like bathroom floors or kitchen backsplashes
• Projects where you can take your time and don't face deadline pressure
• Installations where you've practiced techniques on sample boards first

Effective tile calibration isn't just about technical precision—it's about understanding that manufactured tiles have natural variations and developing strategies to work with those variations rather than against them. By sorting and measuring tiles, using appropriate joint widths, leveraging leveling systems, planning centered layouts, backbuttering properly, and performing regular spot checks, you ensure professional results that stand the test of time.

Whether you're a homeowner tackling your first tile project or a professional installer refining your technique, these calibration strategies help achieve that smooth, professionally installed appearance that adds value and beauty to any space.
