Green Fluted Tile Shower in Arvada with a White Hex Floor
A walk-in shower built around ribbed, kit-kat-style green tile — vertical channels floor to ceiling, a recessed niche, matte black fixtures, and a white hexagon mosaic floor. This green fluted tile shower shows what texture and color can do in a Denver-metro bathroom.
Project Overview

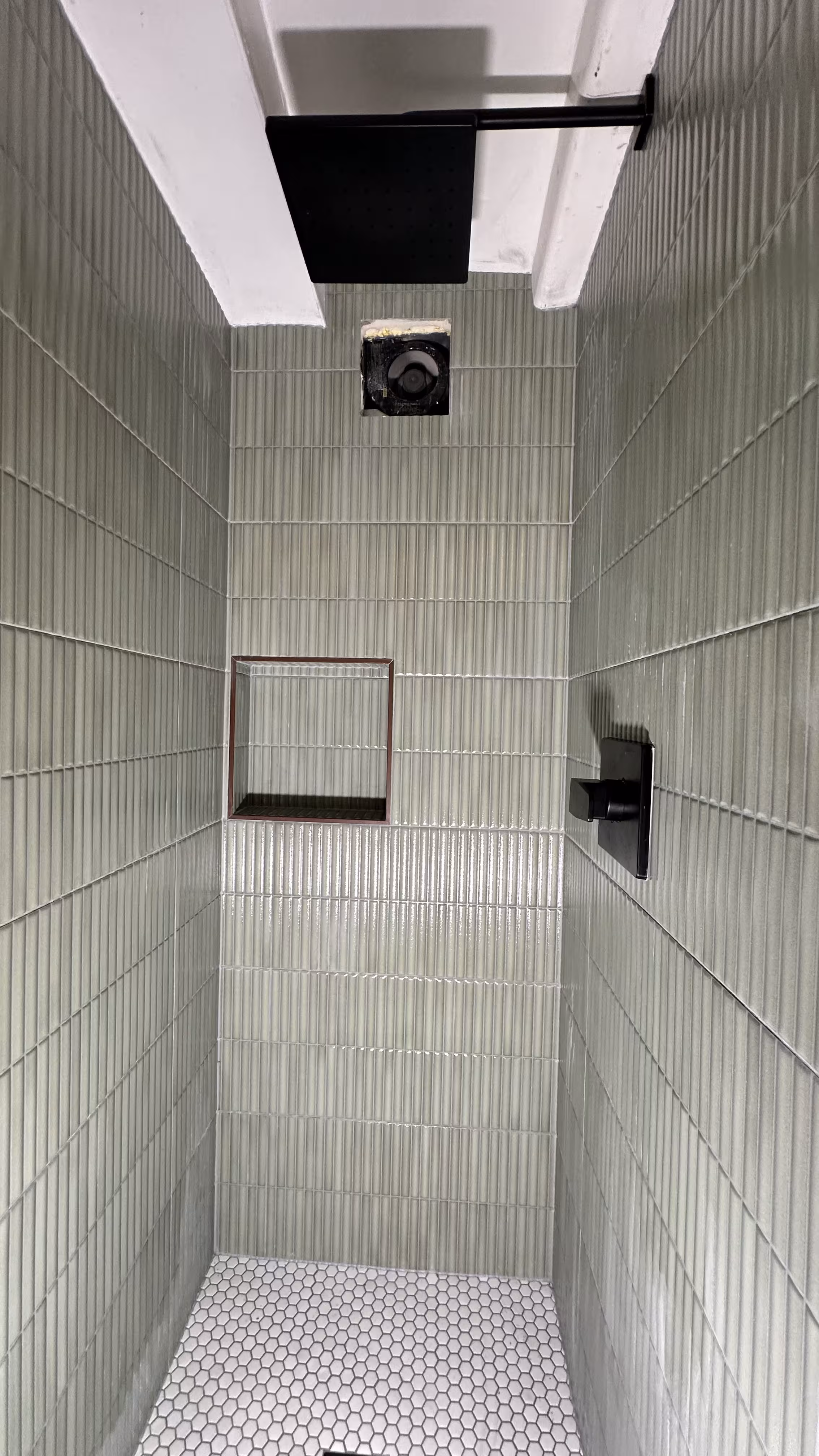

This green fluted tile shower is one of the most design-forward projects we have installed in Arvada. The walls are wrapped in ribbed green tile — narrow vertical strips with a rounded, three-dimensional face — running floor to ceiling around the walk-in enclosure. Underfoot, a white hexagon mosaic floor slopes to a matte black square drain, and black fixtures finish the palette. The homeowners came to us with a clear reference look; our job was to make it real in an ordinary framed bathroom.
Fluted tile — sometimes called reeded or ribbed tile — has a face cut with vertical half-round channels, so the surface is genuinely three-dimensional. That separates it from a standard flat kit-kat layout, where slim flat strips are stacked to suggest texture. With true fluted tile the texture is physical: it catches side light, casts fine shadows, and changes appearance through the day. That is exactly why the format has moved from restaurants and hotel bars into residential showers — it adds architecture to a room without adding a single extra material.
The color matters as much as the profile. This glaze sits somewhere between sage and forest green depending on the light — deep enough to feel deliberate, soft enough not to darken the room. Against it, the white hex floor keeps the shower bright, and the matte black rain head, hand wand, valve trim, and drain give the composition its edges. We install fluted and other designer tile showers throughout Arvada and the entire Denver metro, so if this look is on your list, the photos below show exactly how it comes together.
Project Details
Location
Arvada, CO
Project Type
Fluted tile walk-in shower
Style
Green fluted walls, white hex floor
Approach
Full waterproofed shower assembly
Scope of Work
- Green fluted (kit-kat) wall tile, floor to ceiling
- White hexagon mosaic shower floor
- Recessed tiled niche with mitered edges
- Shower pan, curb & waterproofing
- Matte black rain head, hand wand & valve trim
- Matte black square drain

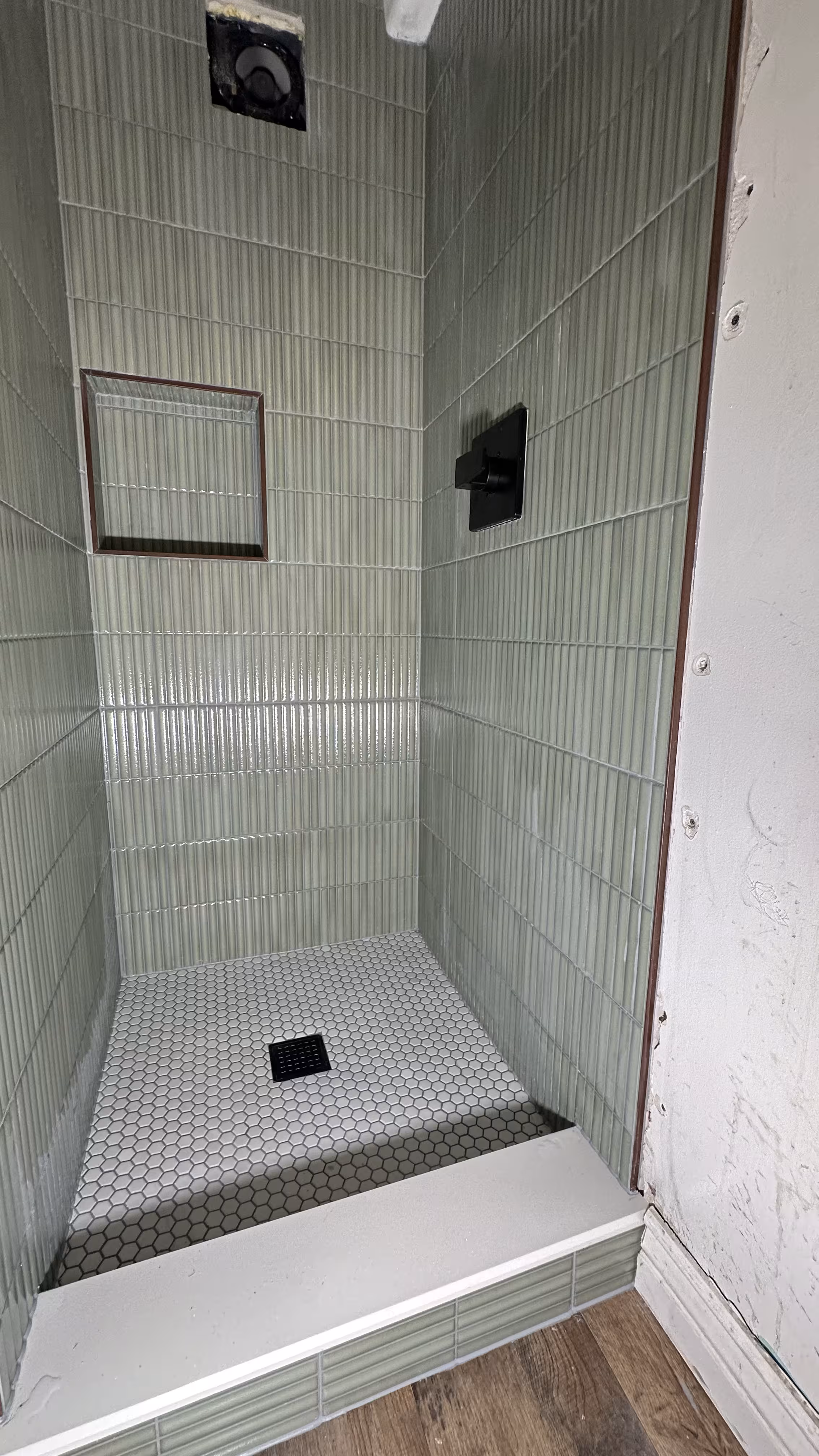

- Curb transition to wood flooring
The Challenge
Fluted tile is one of the least forgiving wall tiles we install. Every cut passes through the ribs, so an off-center layout is instantly visible — the channels have to run continuously around the enclosure, meet the corners symmetrically, and frame the niche and the valve without leaving slivers. There is no bullnose for a ribbed profile, which means every exposed edge — the niche opening, the curb, the outside corners — has to be resolved with mitered cuts or trim profiles planned before the first tile goes on the wall.
Texture also raises the stakes on flatness. Light rakes across a ribbed surface, and raking light telegraphs every high or low tile far more than it would on a flat wall. The substrate had to be dead flat, each strip set true, and the grout joints tuned so the walls read as one continuous fluted surface. Add a recessed niche, a ceiling vent penetration, and a plumbing wall full of holes to core, and this project became a sequence of layout puzzles rather than a routine tile job.
How We Built This Green Fluted Tile Shower
Layout discipline first, waterproofing throughout, detail work everywhere
Waterproofed Assembly & Flute Layout
The shower was built as a complete waterproofed assembly before any green tile appeared: substrate prepared and flattened to ANSI A108.01 requirements, a properly sloped pan, and a sealed membrane behind every wall. Then came the layout stage, which on a fluted project takes far longer than usual. We dry-laid the pattern to center the flutes on the plumbing wall, balanced the cuts at both corners so the strips land symmetrically, and set a level-checked first course — vertical channels amplify any tilt, so the starting row has to be perfect.

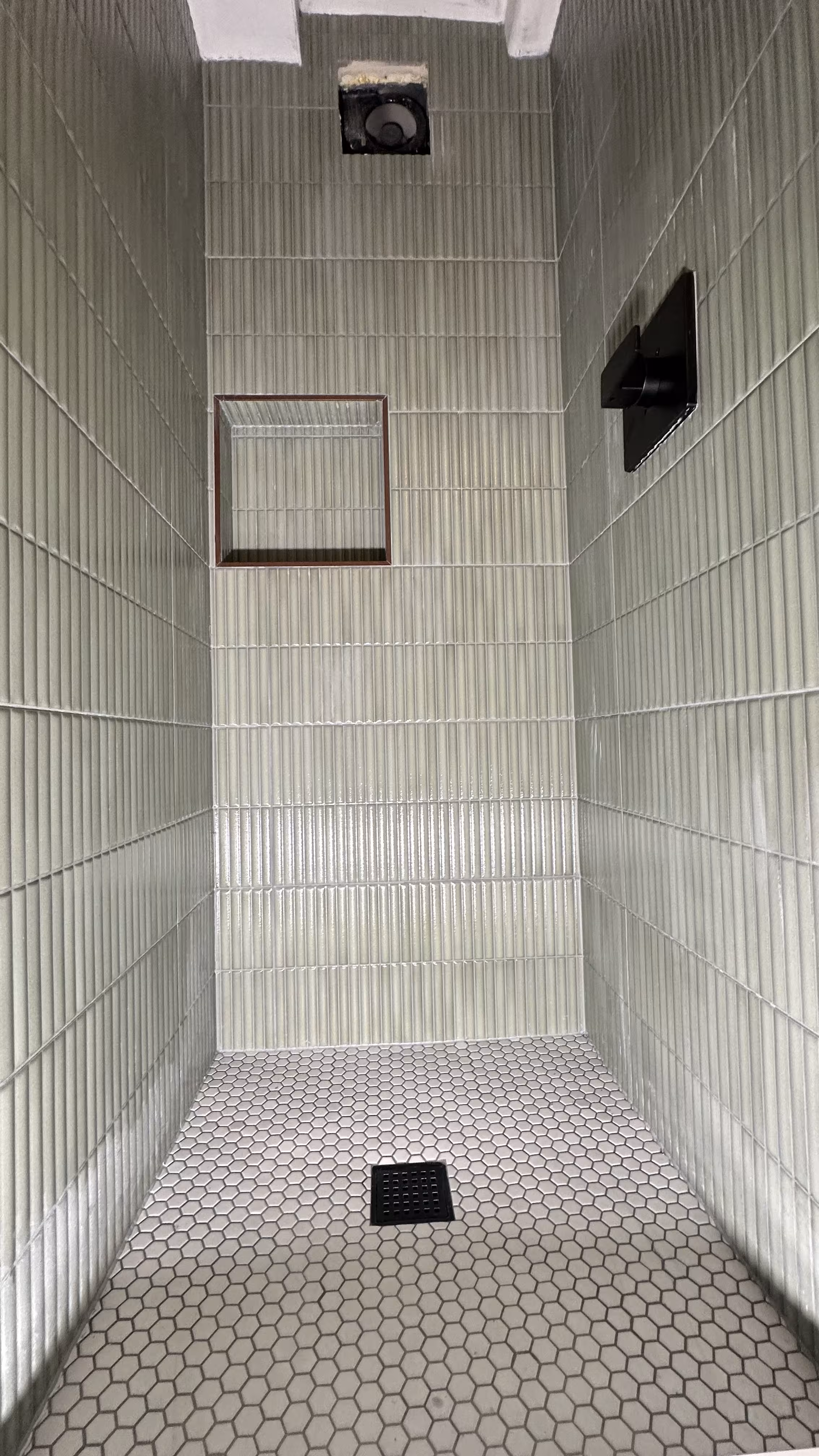

The recessed niche was framed and waterproofed into the wall at this stage, positioned so its opening would land on flute lines instead of interrupting a channel mid-strip.
Niche, Valve & Edge Detailing

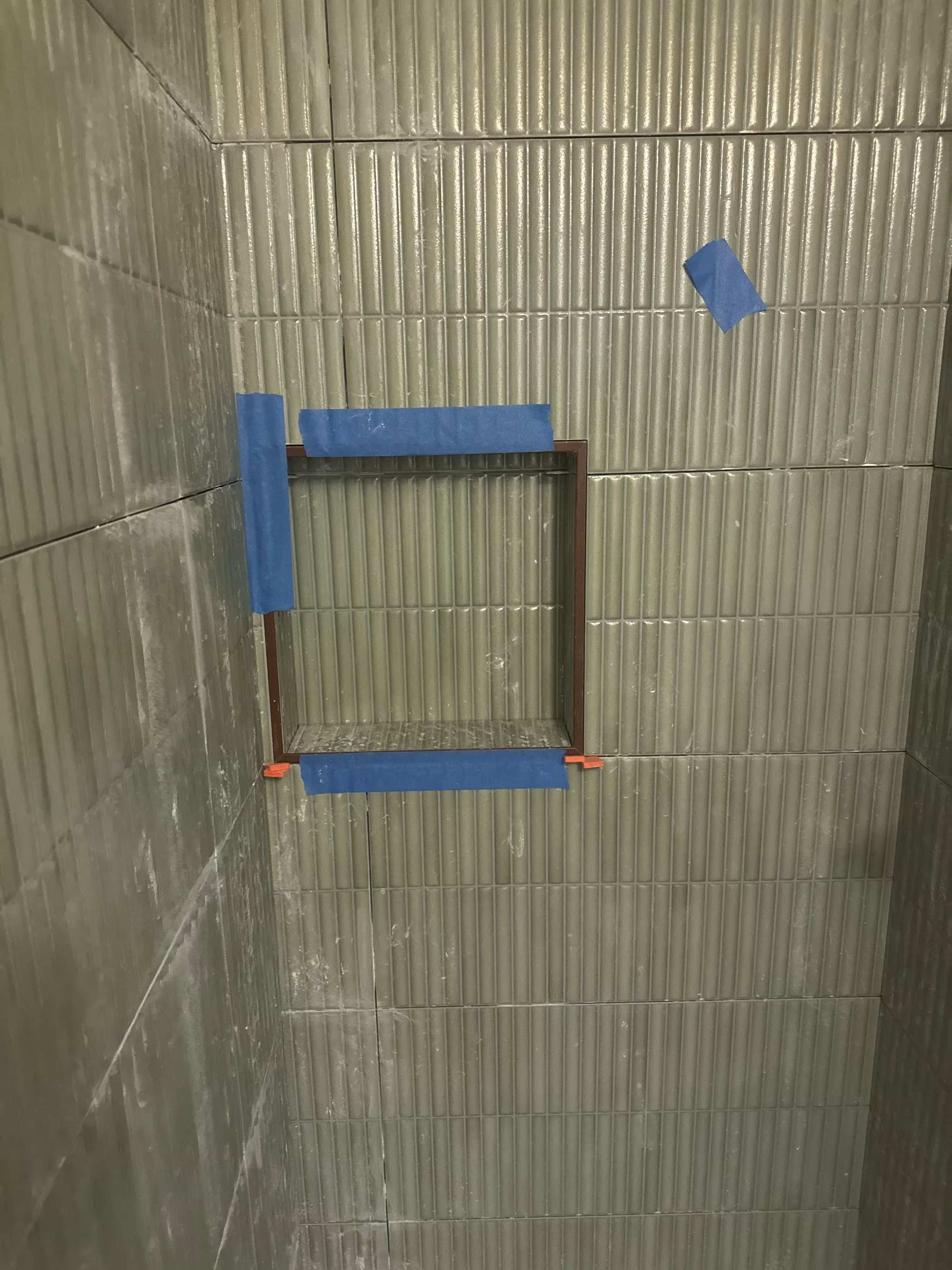

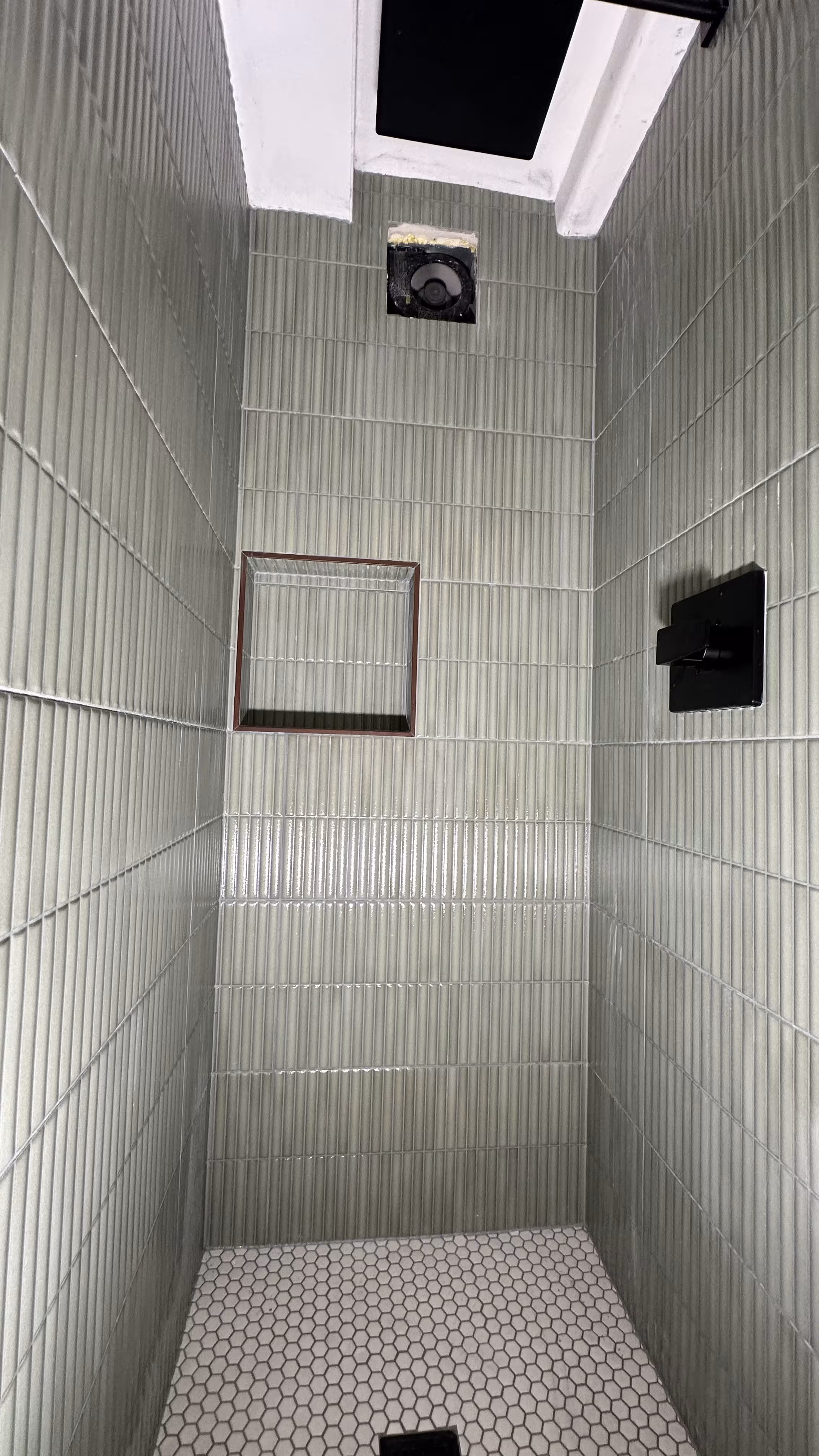

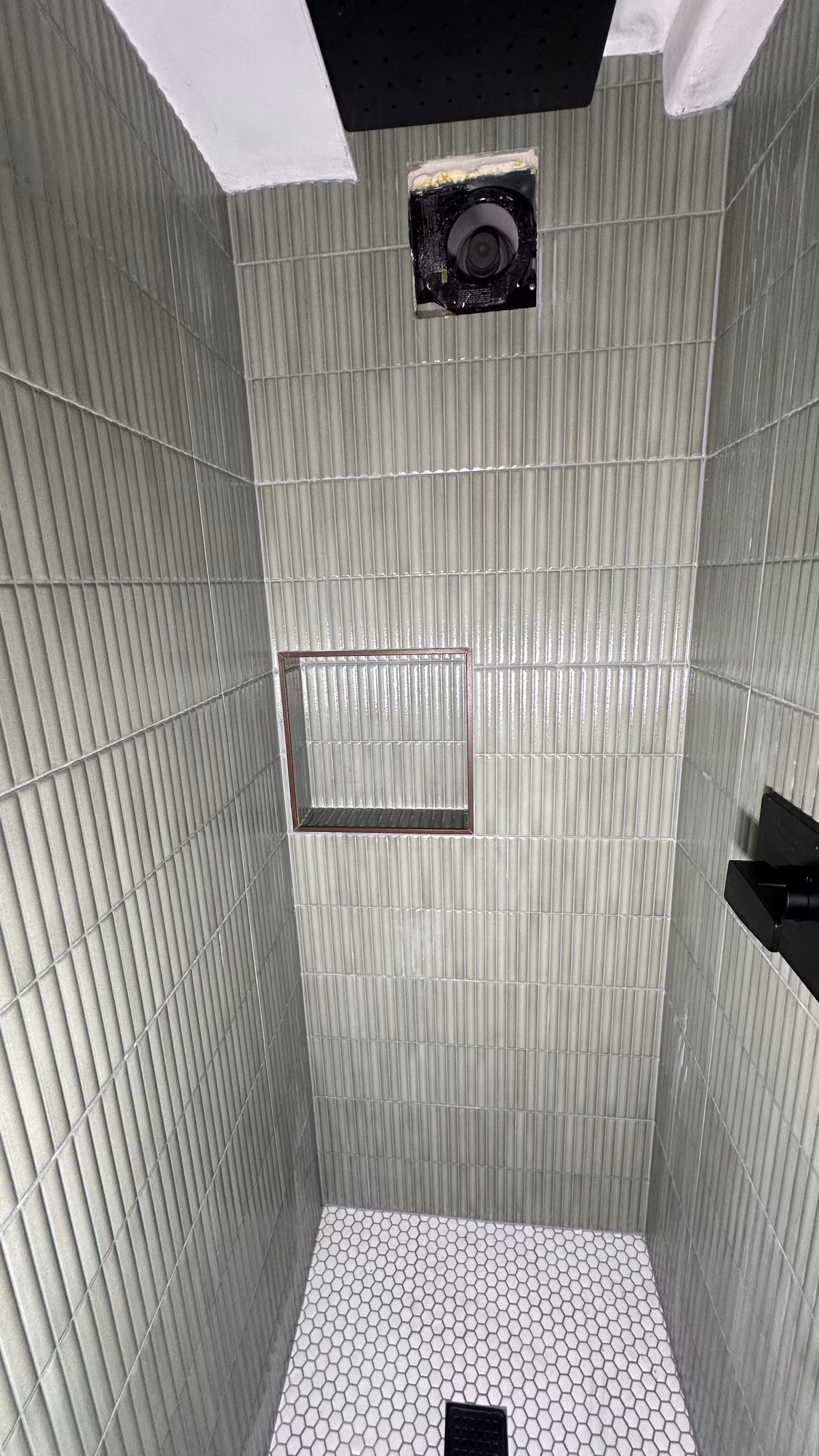

The niche is where fluted tile shows its difficulty. Each cut around the opening runs through the ribs, and the exposed edges cannot be bullnosed, so we finished the opening with clean mitered returns and taped the assembly while the adhesive cured — one of the mid-installation photos on this page shows exactly that stage. The result is a storage recess that sits inside the ribbed field instead of looking like a hole punched through it.

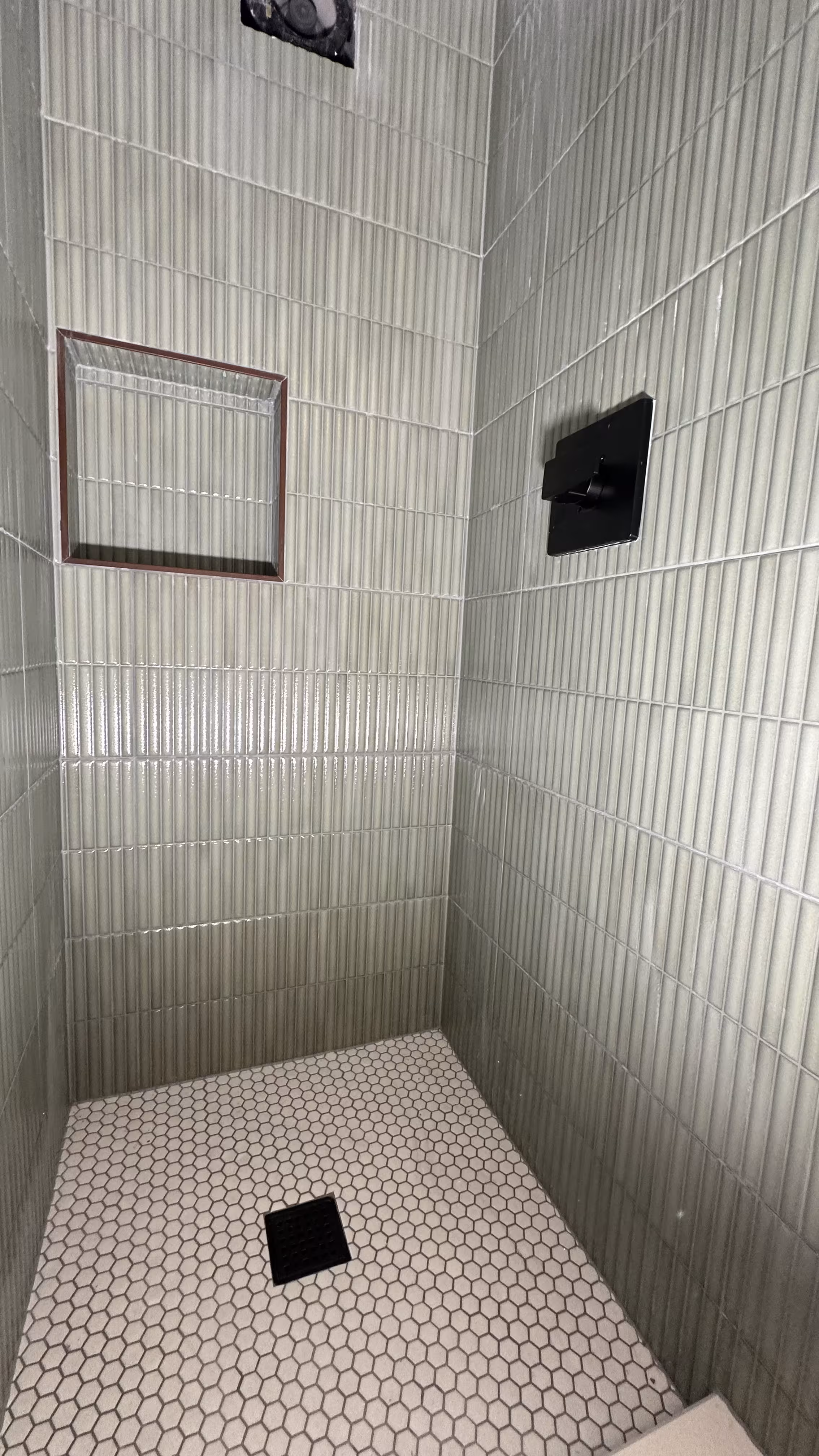

The valve and shower controls were cored through the tile so the black escutcheons sit centered on the fluted field rather than clipped into a channel edge. Inside corners got full flutes meeting at the change of plane, with the joint itself left open for flexible sealant rather than grout.
Hex Floor, Grout Strategy & Black Fixtures

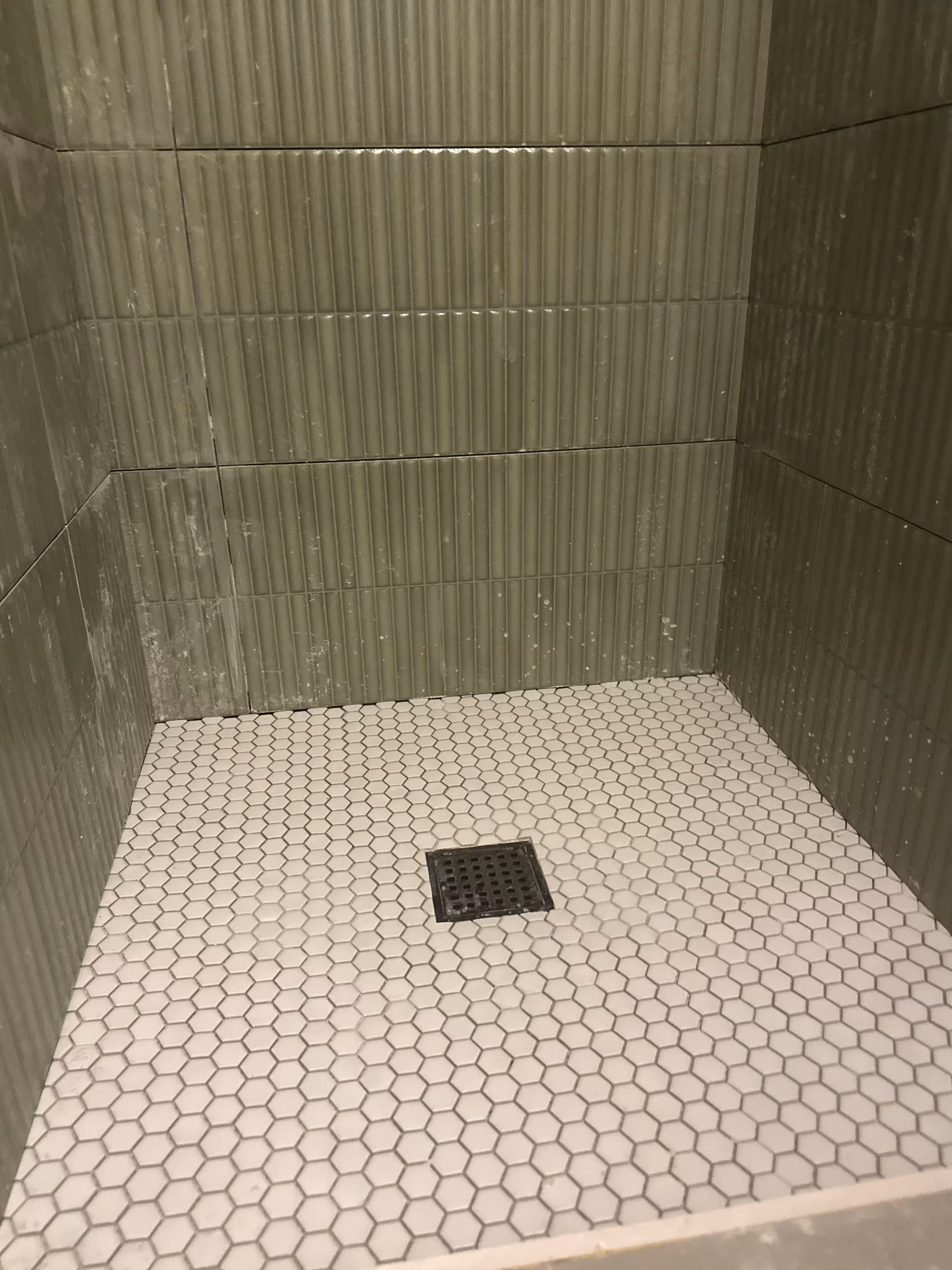

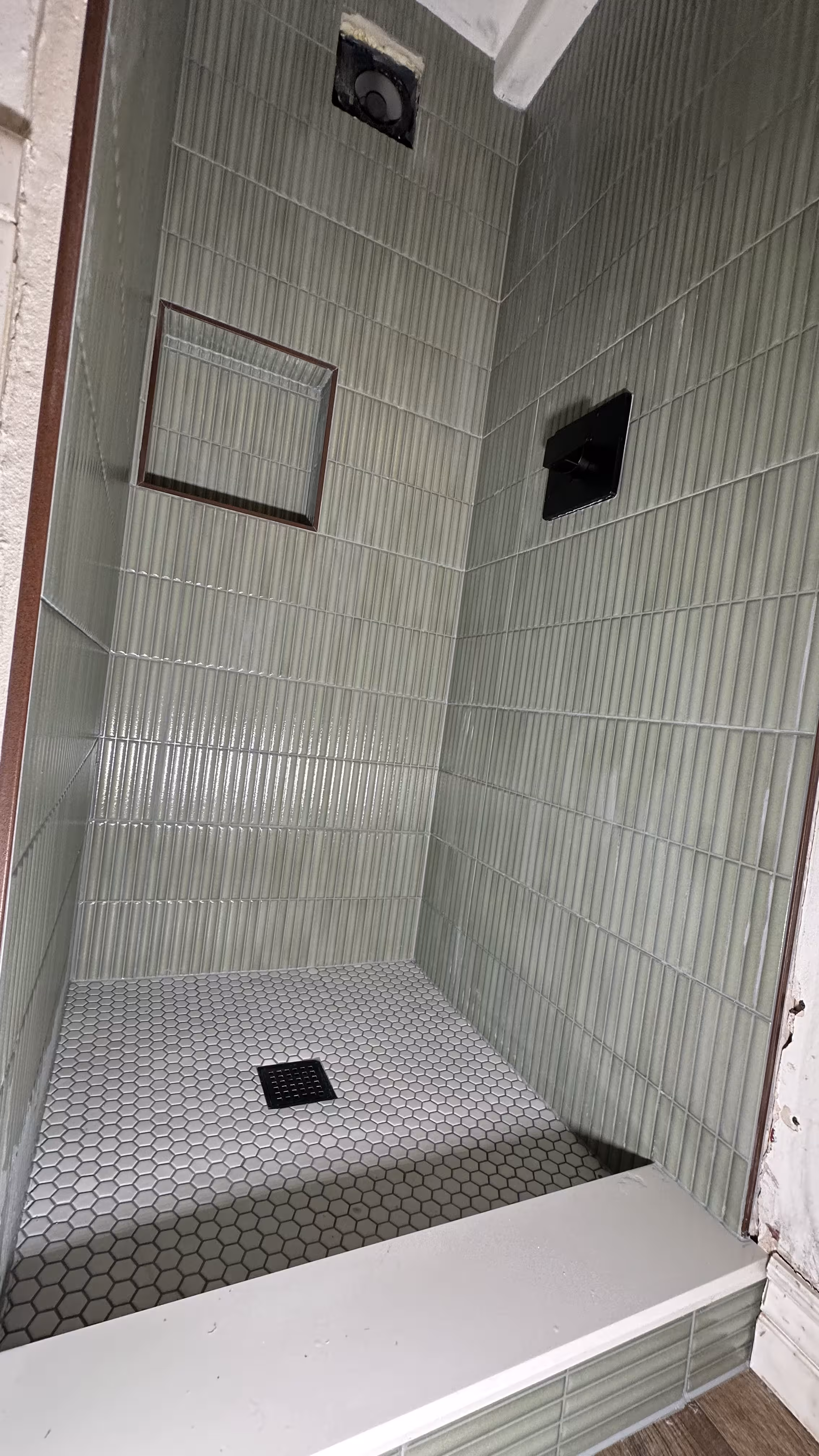

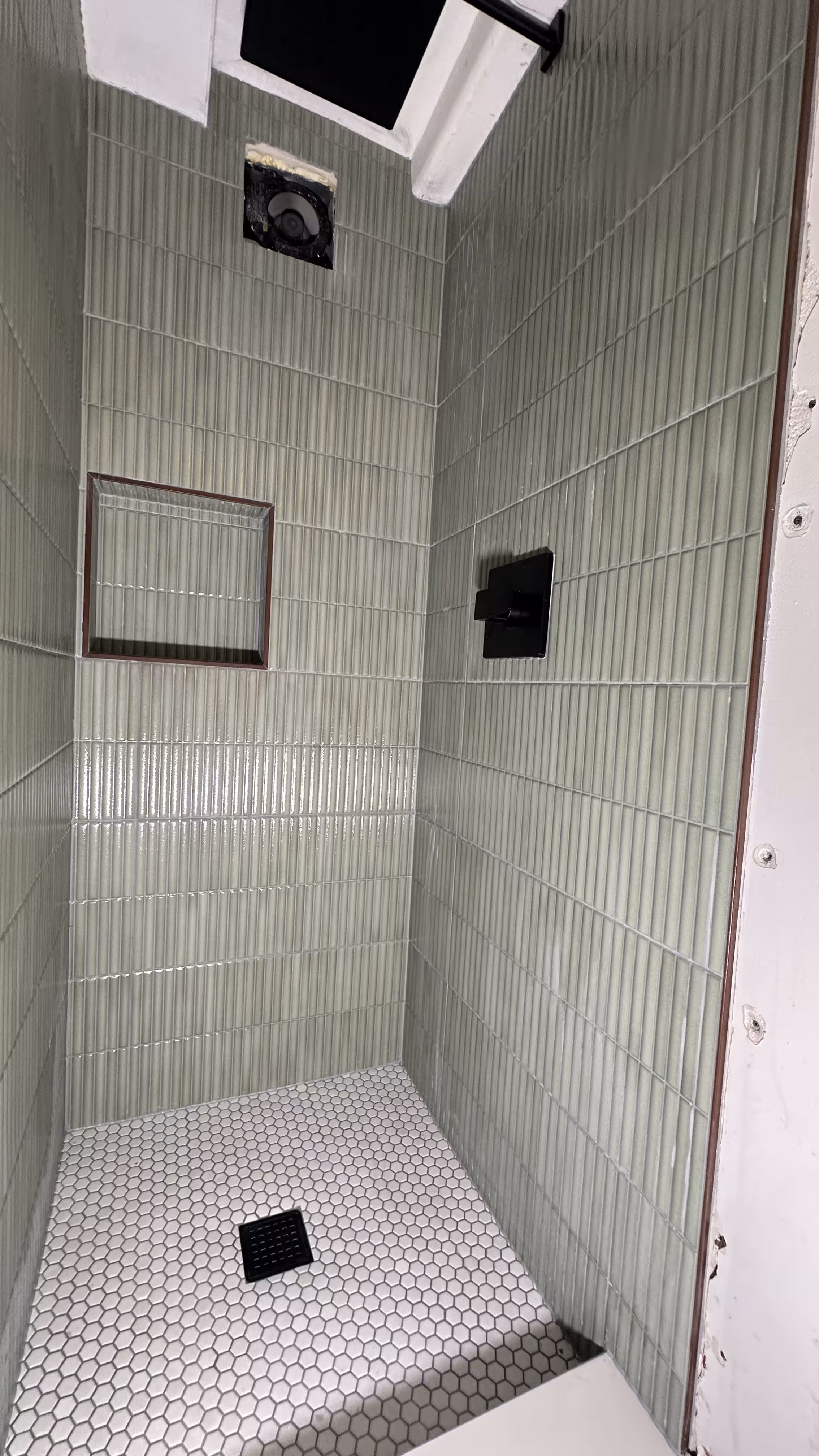

The floor is a white hexagon mosaic sloped to a matte black square drain — a flat, grippy counterpoint to the textured walls. For grout we went two directions: a tone matched to the green on the walls, so the joints disappear and the flutes read as one continuous surface, and a light grout on the floor to keep the hex pattern crisp. Every wall-to-wall and wall-to-floor transition was finished with flexible ASTM C920 sealant instead of grout, with TCNA-required movement accommodation kept at the perimeter.

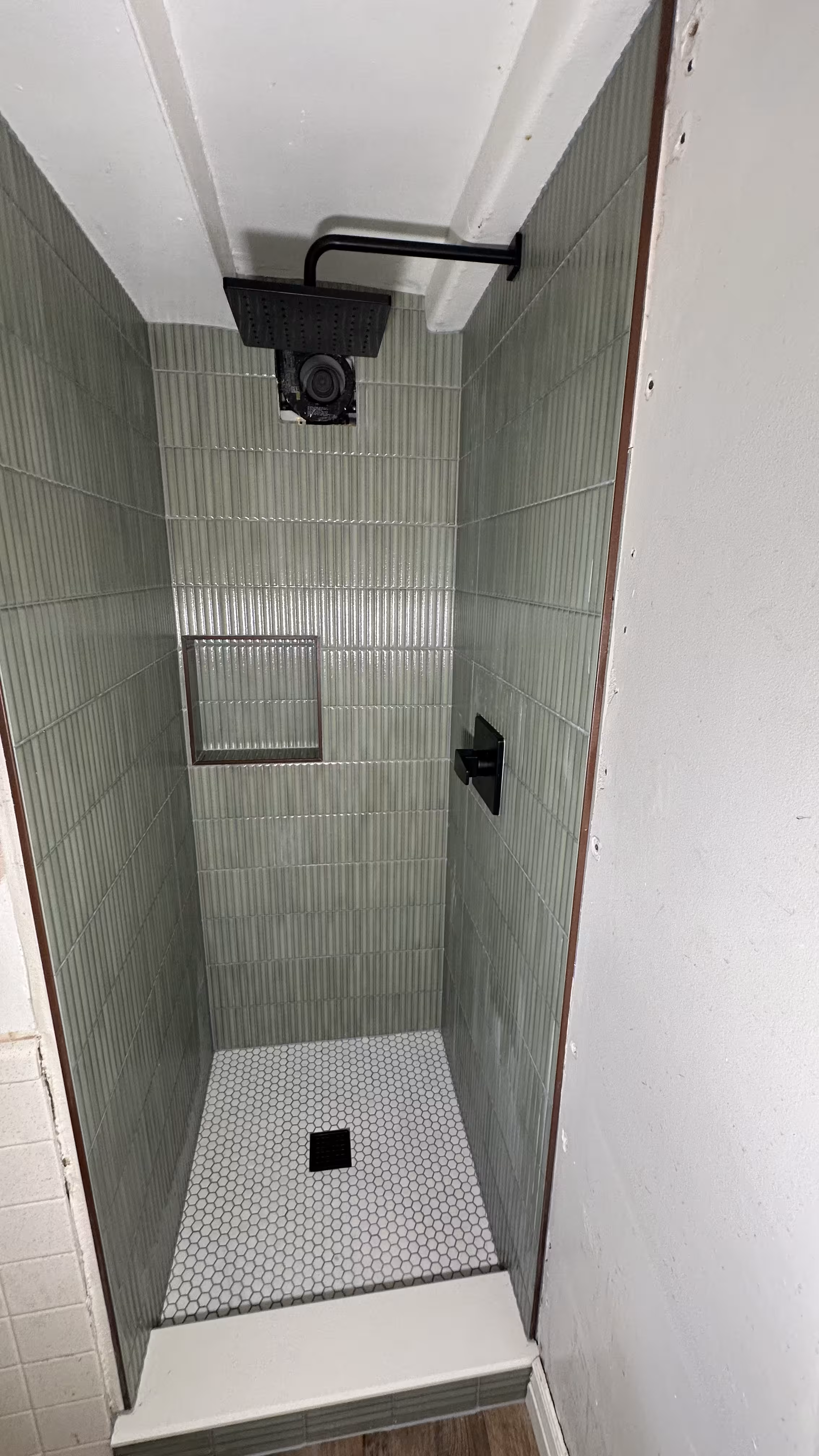

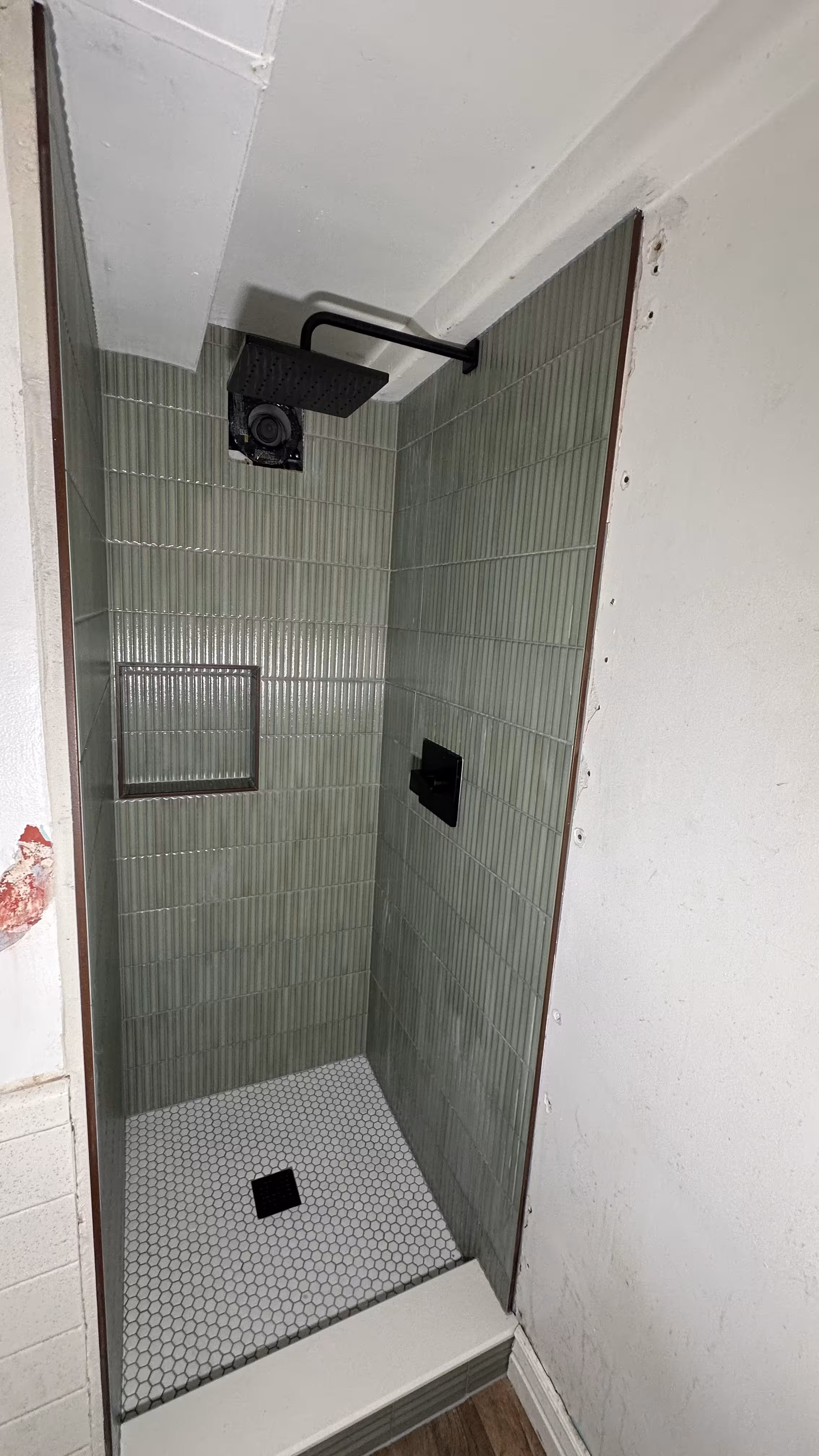

Matte black completed the room: rain shower head, hand wand, valve trim, and drain, all chosen by the homeowners to sharpen the green-and-white palette.
Project Gallery
From mid-installation to finished details — fluted walls, hex floor, and black hardware
Technical Standards
The design is trend-driven; the installation is standards-driven
- ANSI A108.01 substrate preparation & general requirements
- ANSI A108.02 installation & workmanship standards
- TCNA movement joint requirements for every tile installation
- ASTM C920 elastomeric sealant at all changes of plane
- Caulk (not grout) at wall-to-wall & wall-to-floor joints
- Green fluted (kit-kat profile) wall tile, floor to ceiling
- White hexagon mosaic shower floor
- Tone-matched wall grout; light floor grout
- Recessed tiled niche with mitered edges
- Matte black rain head, hand wand & valve trim
- Matte black square drain & tiled curb to wood flooring
The Results

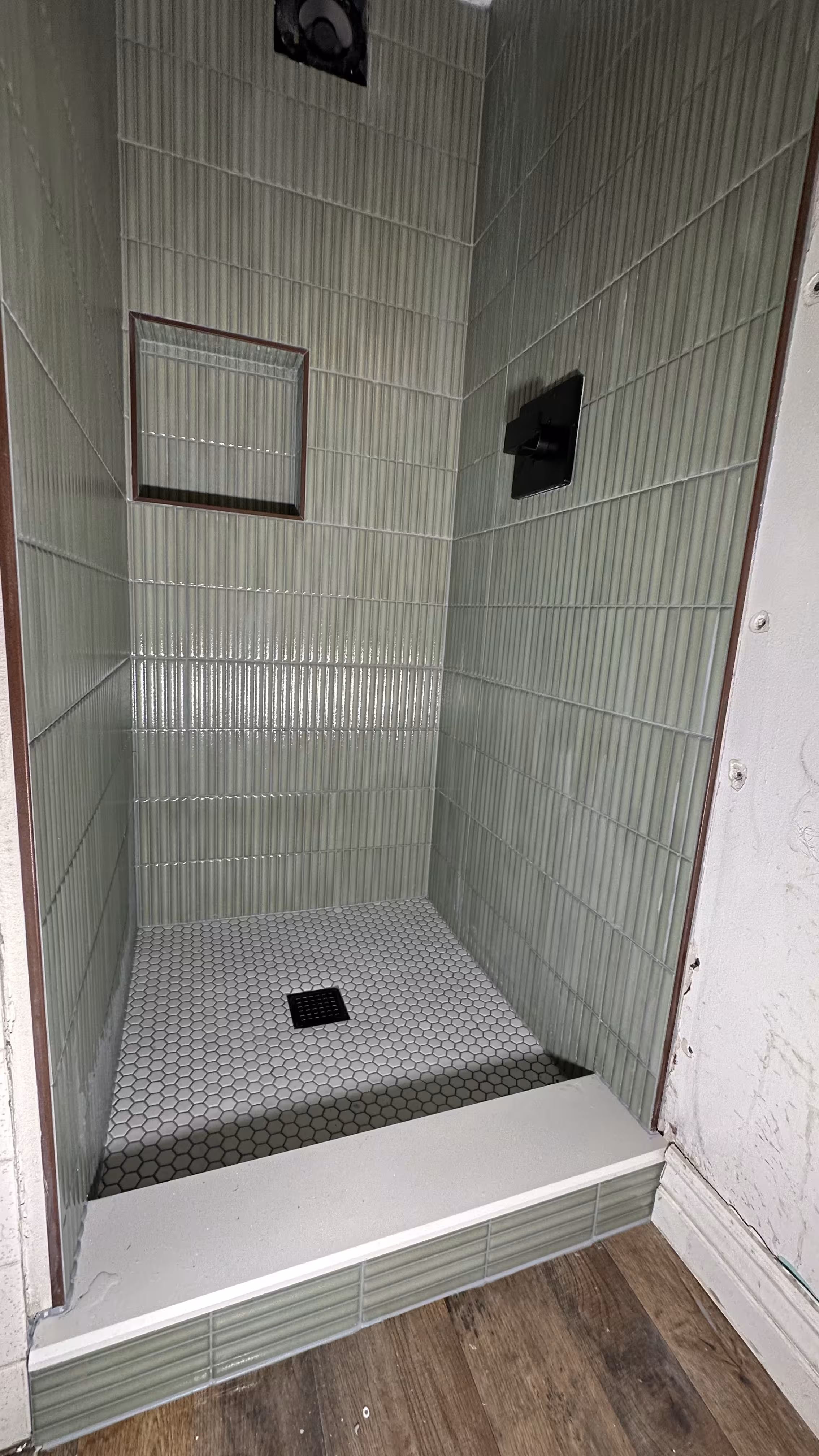

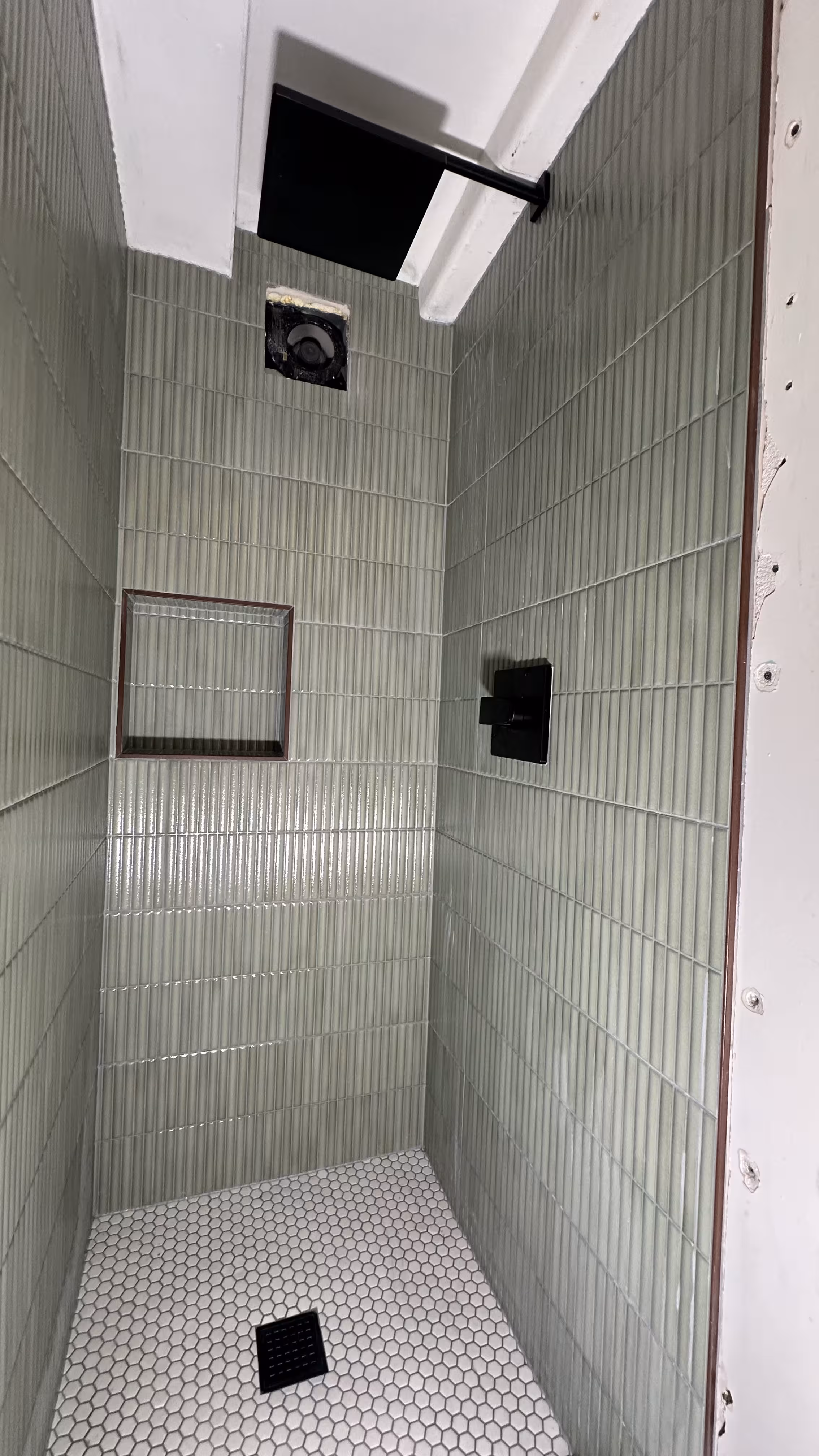

The finished shower does what good textured tile is supposed to do: it changes through the day. In the morning, side light rakes across the flutes and the walls ripple with fine shadows; by evening the channels soften into quiet vertical stripes and the green reads darker and calmer. The white hex floor keeps the room bright underfoot, and the black hardware gives the eye clean points to land on.
It is also a very buildable kind of drama. Nothing here is oversized or fragile — a standard walk-in footprint with a curb, a niche, and one continuous material idea executed carefully. If you are considering this look as part of a full bathroom renovation, the same fluted walls pair just as well with wood-tone vanities and brass as they do with matte black.
What Arvada Clients Say
Megan R.
Arvada
“We had seen green fluted tile all over design accounts and were nervous nobody local could actually install it well. The channels line up perfectly around the niche and the corners, and the hex floor with the black drain looks even better in person. The shower is the best room in our house now.”
Daniel K.
Arvada
“The crew treated the layout like a math problem before a single tile went on the wall — they showed us exactly where every cut would land. The ribbed tile catches the light in the evening, and the matte black fixtures against the green are exactly the look we wanted.”
Frequently Asked Questions
Common questions about fluted, ribbed, and kit-kat tile showers
Fluted tile has a three-dimensional face — vertical half-round channels, like a ribbed or reeded surface — so it catches light and casts small shadows. Kit-kat usually refers to flat, finger-sized strips stacked vertically. The two are often confused because the format looks similar from a distance, but fluted tile adds real depth, which changes how it is cut, edged, and grouted.
It takes slightly more attention than flat tile because soap residue can settle in the channels, but the routine is simple: rinse after showering, run a squeegee or microfiber cloth along the flutes, and use a soft brush in the grooves every few weeks. A glazed fluted tile like the one used in this Arvada shower does not absorb water, so there is nothing exotic about the upkeep.
Usually, yes. The material itself is often comparable to other designer tile, but labor is higher: every cut runs through the ribs and must be planned so the pattern stays symmetrical, edges cannot simply be bullnosed, and alignment is checked constantly. Expect the wall installation to take noticeably longer than a flat subway or kit-kat layout of the same size.
Fluted tile belongs on walls — shower surrounds, accent walls, tub aprons, and fireplace surrounds. It should not go on shower floors: the ribbed profile cannot be sloped to a drain properly and is uncomfortable underfoot. That is why this project pairs fluted walls with a flat white hexagon mosaic floor, which handles the slope and adds grip through its many grout joints.
A grout tone matched closely to the tile keeps the wall reading as one continuous ribbed surface, which is what we did here — the joints disappear and the flutes do the visual work. A contrasting grout outlines every strip and makes the wall busier. On the floor we used a light grout with the white hexagon mosaic to keep the contrast between walls and floor clean.
No — waterproofing lives behind the tile, not on its face. The shower is built as a waterproofed assembly first, with the substrate prepared under ANSI A108.01 and the tile set to ANSI A108.02 workmanship standards. The ribbed face changes nothing about that system. What texture does demand is extra care at penetrations and plane changes, which are sealed with flexible ASTM C920 sealant rather than grout.
Yes. TCNA guidance calls for movement accommodation in every tile installation because tile is a rigid surface layer over a structure that expands, contracts, and deflects. A ribbed profile does not exempt a shower from that requirement. In practice, the perimeter joints and every wall-to-wall and wall-to-floor change of plane get a flexible ASTM C920 sealant instead of grout.
Edge finishing is one of the hardest parts of a fluted installation. The ribbed face cannot be bullnosed like flat tile, so exposed edges are resolved with mitered cuts or a slim metal edge profile, and the layout is planned so a full flute — not a sliver — lands at each corner. The niche in this shower was trimmed and taped off while the adhesive cured to keep those edges crisp.
